Bowed External Retaining Rings

External Retaining Rings: Bowed External Retaining Rings

Arcon Ring’s Bowed External Retaining Rings are designed to act as a spring once installed, helping to compensate for accumulated manufacturing tolerances. By maintaining constant compression, bowed rings reduce shaft “play” and ensure a more secure fit. Ideal for applications where dimensional variation is a factor, these rings provide reliable performance and lasting tension.

Explore our full range of bowed external ring dimensions and configuration drawings below. Need a custom fit? Design your own bowed ring directly on our site.

Ring Specifications
Stamped Retaining Rings

Download Our Product Catalog

View Catalog

Connect with a Retaining Ring Expert

Contact Arcon
Specifications

Custom Sizes Obtainable: 0.050″ to 60″

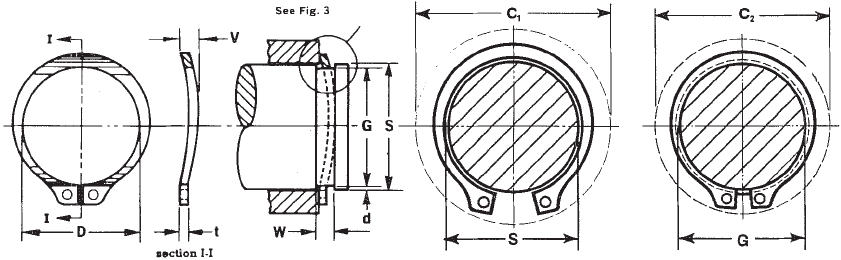

Bowed External Retaining Rings Technical Drawing
Part Number Shaft Diameter Ring Dimensions Groove Dimensions
Free Dia. Thickness Diameter Width
Dec. equiv. Inch Approx. Fract. Equiv. Inch Approx. mm D tol. t tol. lbs. G tol. W tol. d C1 C2 Thrust Load
1401-18 0.188 3/16 4.8 0.168 +.002
-.004		 0.015 ±.002 0.06 0.175 ±.0015
.0015		 0.030 +.002
-.000		 >0.006 0.298 0.286 240
1401-19 0.197 – 5 0.179 0.015 0.06 0.185 0.030 0.006 0.319 0.307 250
1401-21 0.219 7/32 5.6 0.196 0.015 0.07 0.205 0.030 0.007 0.338 0.324 280
1401-23 0.236 15/64 6 0.215 0.015 0.09 0.222 0.030 0.007 0.355 0.341 310
1401-25 0.250 1/4 6.4 0.225 0.025 0.21 0.230 0.040 +.003
-.000		 0.010 0.450 0.430 590
1401-27 0.276 – 7 0.250 +.002
-.005		 0.025 0.23 0.255 ±.002
.002		 0.040 0.010 0.480 0.460 650
1401-28 0.281 9/32 7.1 0.256 0.025 0.24 0.261 0.040 0.010 0.490 0.470 660
1401-31 0.312 5/16 7.9 0.281 0.025 0.27 0.290 0.040 0.011 0.540 0.520 740
1401-34 0.440 11/32 8.7 0.309 0.025 0.31 0.321 0.040 0.011 0.570 0.550 800
1401-35 0.354 – 9 0.320 0.025 0.35 0.330 0.040 0.012 0.590 0.570 820
1401-37 0.375 3/8 9.5 0.338 0.025 0.39 0.352 0.040 0.012 0.610 0.590 870
1401-39 0.394 – 10 0.354 0.025 0.42 0.369 0.040 0.012 0.620 0.600 940
1401-40 0.406 13/32 10.3 0.366 0.025 0.43 0.382 0.040 0.012 0.630 0.610 950
1401-43 0.438 7/16 11.1 0.395 0.025 0.50 0.412 0.040 0.013 0.660 0.640 1020
1401-46 0.469 15/32 11.9 0.428 0.025 0.54 0.443 0.040 0.013 0.680 0.660 1100
1401-50 0.500 1/2 12.7 0.461 0.035 0.91 0.468 ±.002
.004		 0.055 0.016 0.770 0.740 1650
1401-55 0.551 – 14 0.509 +.005
-.010		 0.035 0.90 0.519 0.055 0.016 0.810 0.780 1800
1401-56 0.562 9/16 14.3 0.521 0.035 1.10 0.530 0.055 0.016 0.820 0.790 1850
1401-59 0.594 19/32 15.1 0.550 0.035 1.20 0.559 ±.003.004 0.055 0.017 0.860 0.830 1950
1401-62 0.625 5/8 15.9 0.579 0.035 1.30 0.588 0.055 0.018 0.900 0.870 2060
1401-66 0.669 – 17 0.621 0.035 1.40 0.629 0.055 0.020 0.930 0.890 2200
1401-66 0.672 43/64 17.1 0.621 0.035 1.40 0.631 0.055 0.020 0.930 0.890 2200
1401-68 0.688 11/16 17.5 0.635 0.042 1.80 0.646 0.062 0.021 1.010 0.970 3400
1401-75 0.750 3/4 19 0.693 0.042 2.10 0.704 0.062 0.023 1.090 1.050 3700
1401-78 0.781 25/32 19.8 0.722 0.042 2.20 0.733 0.062 0.024 1.120 1.080 3900
1401-81 0.812 13/16 20.6 0.751 0.042 2.50 0.762 0.062 0.025 1.150 1.100 4000
1401-87 0.875 7/8 22.2 0.810 0.042 2.80 0.821 0.062 0.027 1.210 1.160 4300
1401-93 0.938 15/16 23.8 0.867 0.042 3.10 0.882 0.062 0.028 1.340 1.290 4650
1401-98 0.984 63/64 25 0.910 0.042 3.50 0.926 0.062 0.029 1.390 1.340 4850
1401-100 1.000 1 25.4 0.925 0.042 3.60 0.940 0.062 0.030 1.410 1.350 4950
1401-102 1.023 – 26 0.946 0.042 3.90 0.961 0.062 0.031 1.430 1.370 5050
1401-106 1.062 1 1/16 27 0.982 +.010
-.015		 0.050 4.80 0.998 ±.004
.005		 0.070 0.032 1.500 1.440 6200
1401-112 1.125 1 1/8 28.6 1.041 0.050 5.10 1.059 0.070 0.033 1.550 1.490 6600
1401-118 1.188 1 3/16 30.2 1.098 0.050 5.60 1.118 0.070 0.035 1.610 1.540 7000
1401-125 1.250 1 1/4 31.7 1.156 0.050 5.90 1.176 0.070 0.037 1.690 1.620 7350
1401-131 1.312 1 5/16 33.3 1.214 0.050 6.80 1.232 0.070 0.040 1.750 1.670 7750
1401-137 1.375 1 3/8 34.9 1.272 0.050 7.20 1.291 0.070 0.042 1.800 1.720 8100
1401-143 1.438 1 7/16 36.5 1.333 0.050 8.10 1.350 0.070 0.044 1.870 1.790 8500
1401-150 1.500 1 1/2 38.1 1.387 0.050 9.00 1.406 0.070 0.047 1.990 1.900 8800
1401-162 1.625 1 5/8 41.3 1.503 +.013
-.020		 0.062 ±.003 13.20 1.529 ±.005.005 0.096 +.005
-.000		 0.048 2.170 2.080 11850
1401-175 1.750 1 3/4 44.4 1.618 0.062 15.30 1.650 0.096 0.050 2.310 2.210 12800
