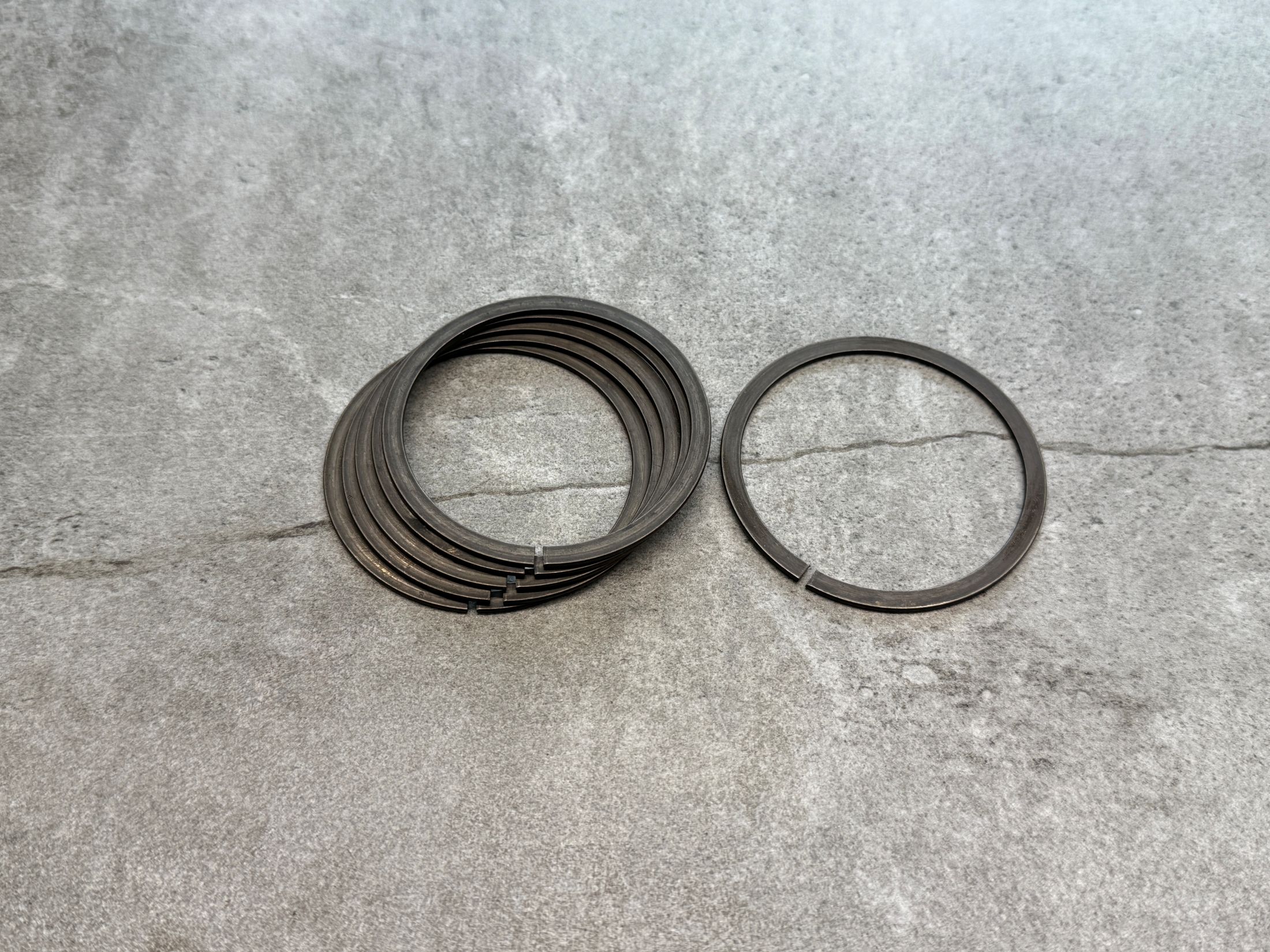

Bearing Retention Wire Snap Rings
Arcon Ring’s bearing retention wire snap rings are known internationally for their ability to hold tight tolerances. Much like square wire snap rings, bearing retention rings provide a high degree of strength for ball bearing shaft applications. We provide short, fast lead times because no extensive tooling is required, which traditionally lengthen lead times. Let Arcon Ring help your business stay cost-effective and boost your productivity and efficiency. Contact Arcon Ring for assistance.
Request Your Custom Quote Today
Connect with a Retaining Ring Expert
Specifications
Catalog Stock Sizes Available: 30mm to 240mm
Custom Sizes Obtainable: 0.050″ to 60″
Standard Material: Carbon Spring Steel
Standard Finish: Phosphate & Oil

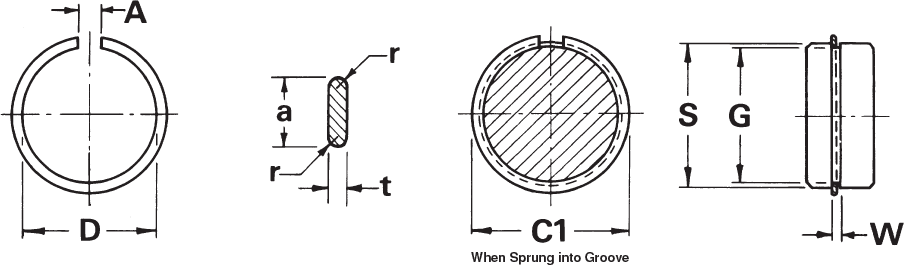

| Part Number | Bearing | Circlip | Groove | Tc† (N) | Bearing No. | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | Thickness | Free Diameter | Diameter | Width | Light | Med. | Heavy | |||||||||||
| mm | t mm | Tol. mm | D mm | Tol. mm | a | Tol. | C1 | A ~ | r (min) | G mm | Tol. mm | W mm | Tol. mm | |||||
| 3200-30 | 30 | 1.12 | 27.40 | 3.25 | 34.7 | 3 | 0.4 | 28.17 | 1.35 | 23000 | 6200 | – | – | |||||
| 3200-32 | 32 | 1.12 | 29.40 | 3.25 | 36.7 | 3 | 0.4 | 30.15 | 1.35 | 24500 | 6201 | – | – | |||||
| 3200-35 | 35 | 1.12 | 32.40 | +0.40 | 3.25 | 39.7 | 3 | 0.4 | 33.17 | 1.35 | 26800 | 6202 | 6300 | – | ||||
| 3200-37 | 37 | 1.12 | 34.00 | -0.00 | 3.25 | 41.3 | 3 | 0.4 | 34.77 | 1.35 | 28300 | 6301 | – | |||||
| 3200-40 | 40 | 1.12 | 37.30 | 3.25 | 44.6 | 3 | 0.4 | 38.10 | 1.35 | 30600 | 6203 | – | – | |||||
| 3200-42 | 42 | 1.12 | 38.90 | 3.25 | 46.3 | 3 | 0.4 | 39.75 | 1.35 | 32100 | – | 6302 | – | |||||
| 3200-44 | 44 | 1.12 | 40.90 | 3.25 | 48.3 | 3 | 0.4 | 41.75 | +0.00 | 1.35 | 33700 | – | – | – | ||||
| 3200-47 | 47 | 1.12 | 43.70 | +0.50 | 4.04 | 52.7 | 4 | 0.4 | 44.60 | -0.25 | 1.35 | 36000 | 6204 | 6303 | – | |||
| 3200-50 | 50 | 1.12 | 46.70 | -0.00 | 4.04 | 55.7 | 4 | 0.4 | 47.60 | 1.35 | 38300 | – | – | – | ||||
| 3200-52 | 52 | 1.12 | 48.80 | 4.04 | 57.9 | 4 | 0.4 | 49.73 | 1.35 | 40000 | 6205 | 6304 | – | |||||
| 3200-55 | 55 | 1.12 | 51.70 | 4.04 | 60.7 | 4 | 0.4 | 52.60 | 1.35 | 42100 | – | – | – | |||||
| 3200-56 | 56 | 1.12 | 52.40 | 4.04 | 61.7 | 4 | 0.4 | 53.60 | 1.35 | 42900 | – | – | – | |||||
| 3200-58 | 58 | 1.12 | 54.40 | 4.04 | 63.7 | 4 | 0.4 | 55.60 | 1.35 | 44400 | – | – | – | |||||
| 3200-62 | 62 | 1.70 | 58.20 | 4.04 | 67.7 | 4 | 0.6 | 59.61 | 1.90 | 72000 | 6206 | 6305 | 6403 | |||||
| 3200-65 | 65 | 1.70 | 61.20 | 4.04 | 70.7 | 4 | 0.6 | 62.60 | 1.90 | 75500 | – | – | – | |||||
| 3200-68 | 68 | 1.70 | 63.40 | 4.85 | 74.6 | 5 | 0.6 | 64.82 | 1.90 | 79000 | – | – | – | |||||
| 3200-72 | 72 | 1.70 | 67.40 | +0.80 | 4.85 | 78.6 | 5 | 0.6 | 68.81 | 1.90 | 83600 | 6207 | 6306 | 6404 | ||||
| 3200-75 | 75 | 1.70 | 70.40 | -0.00 | 4.85 | 81.6 | 5 | 0.6 | 71.83 | 1.90 | 87100 | – | – | – | ||||
| 3200-80 | 80 | 1.70 | 75.40 | 4.85 | 86.6 | 5 | 0.6 | 76.81 | 1.90 | +0.30 | 93000 | 6208 | 6307 | 6405 | ||||
| 3200-85 | 85 | 1.70 | +0.00 | 80.40 | 4.85 | +0.00 | 91.6 | 5 | 0.6 | 81.81 | 1.90 | -0.00 | 98700 | 6209 | – | – | ||
| 3200-90 | 90 | 2.46 | -0.10 | 85.40 | 4.85 | -0.15 | 96.5 | 5 | 0.7 | 86.79 | 2.70 | 151000 | 6210 | 6308 | 6406 | |||
| 3200-95 | 95 | 2.46 | 90.40 | 4.85 | 101.6 | 5 | 0.7 | 91.82 | 2.70 | 160000 | – | – | – | |||||
| 3200-100 | 100 | 2.46 | 95.20 | 4.85 | 106.5 | 5 | 0.7 | 96.80 | 2.70 | 168000 | 6211 | 6309 | 6407 | |||||
| 3200-110 | 110 | 2.46 | 105.20 | 4.85 | 116.6 | 5 | 0.7 | 106.81 | 2.70 | 150000 | 6212 | 6310 | 6408 | |||||
| 3200-115 | 115 | 2.46 | 110.20 | +1.00 | 4.85 | 121.6 | 7 | 0.7 | 111.81 | +0.00 | 2.70 | 193000 | – | – | – | |||
| 3200-120 | 120 | 2.82 | 113.60 | -0.00 | 7.21 | 129.7 | 7 | 0.7 | 115.21 | -0.50 | 3.10 | 231000 | 6213 | 6311 | 6409 | |||
| 3200-125 | 125 | 2.82 | 118.60 | 7.21 | 134.7 | 7 | 0.7 | 120.22 | 3.10 | 241000 | 6214 | – | – | |||||
| 3200-130 | 130 | 2.82 | 123.60 | 7.21 | 139.7 | 7 | 0.7 | 125.22 | 3.10 | 250000 | 6215 | 6312 | 6410 | |||||
| 3200-140 | 140 | 2.82 | 133.00 | 7.21 | 149.7 | 7 | 0.7 | 135.23 | 3.10 | 270000 | 6216 | 6313 | 6411 | |||||
| 3200-145 | 145 | 2.82 | 138.00 | 7.21 | 154.7 | 7 | 0.7 | 140.23 | 3.10 | 279000 | – | – | – | |||||
| 3200-150 | 150 | 2.82 | 142.90 | 7.21 | 159.7 | 7 | 0.7 | 145.24 | 3.10 | 289000 | 6217 | 6314 | 6412 | |||||
| 3200-160 | 160 | 2.82 | 152.90 | +1.60 | 7.21 | 169.7 | 10 | 0.7 | 155.22 | 3.10 | 308000 | 6218 | 6315 | 6413 | ||||
| 3200-170 | 170 | 3.10 | 161.30 | -0.00 | 9.60 | 182.9 | 10 | 0.7 | 163.65 | 3.50 | 360000 | 6219 | 6316 | – | ||||
| 3200-180 | 180 | 3.10 | 171.20 | 9.60 | 192.9 | 10 | 0.7 | 173.66 | 3.50 | 381000 | 6220 | 6317 | 6414 | |||||
| 3200-190 | 190 | 3.10 | 181.00 | 9.60 | 202.9 | 10 | 0.7 | 183.64 | 3.50 | 402000 | 6221 | 6318 | 6415 | |||||
| 3200-200 | 200 | 3.10 | 191.00 | 9.60 | 212.9 | 10 | 0.7 | 193.65 | 3.50 | 424000 | 6222 | 6319 | 6416 | |||||
| 3200-210 | 210 | 3.10 | 200.90 | 9.60 | 222.8 | 10 | 1.2 | 203.60 | 3.50 | 445000 | – | – | 64517 | |||||
| 3200-215 | 215 | 3.10 | 205.90 | +1.80 | 9.60 | 227.8 | 10 | 1.2 | 208.60 | 3.50 | 455000 | 6224 | 6320 | – | ||||
| 3200-225 | 225 | 3.50 | 214.30 | -0.00 | 10.00 | 237.0 | 10 | 1.2 | 217.00 | 4.50 | 538000 | – | 6321 | 6418 | ||||
| 3200-230 | 230 | 3.50 | 219.20 | 10.00 | 242.0 | 10 | 1.2 | 222.00 | 4.50 | +0.40 | 550000 | 6226 | – | – | ||||
| 3200-240 | 240 | 3.50 | 229.20 | 10.00 | 252.0 | 10 | 1.2 | 232.00 | 4.50 | -0.00 | 574000 | – | 6322 | – | ||||
