Eaton Snap Rings > External Eaton Style Rings

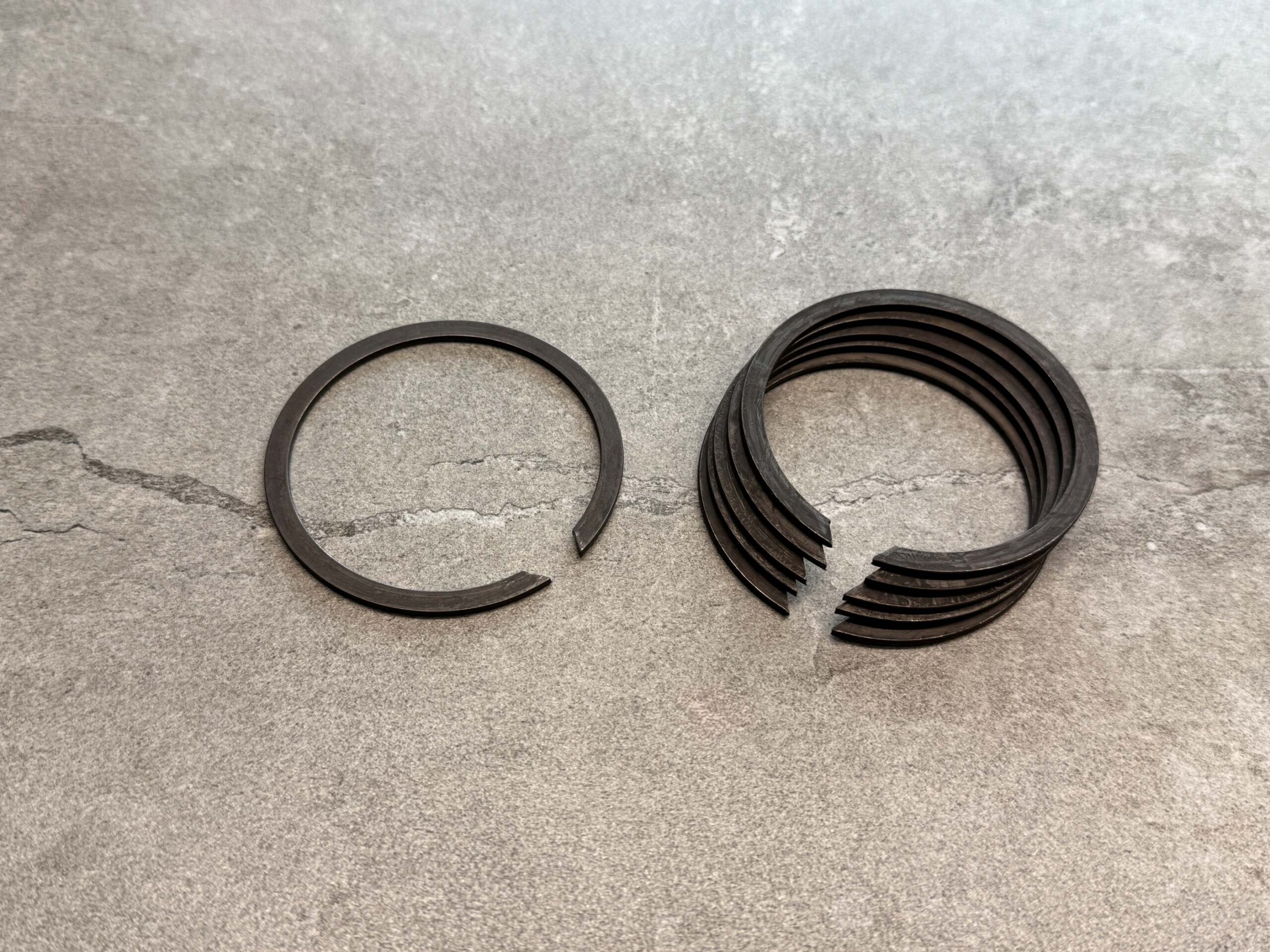

External Light Duty Retaining Ring (XD)
External Eaton Style Rings: Light Duty Retaining Ring (XD)
See our XD External Light Duty Retaining Ring Chart below, which includes technical specifications such as:
- External Light Duty Retaining Ring Dimensions
- External Light Duty Retaining Ring Groove Dimensions
- External Light Duty Retaining Ring Thrust Load
- Plus More

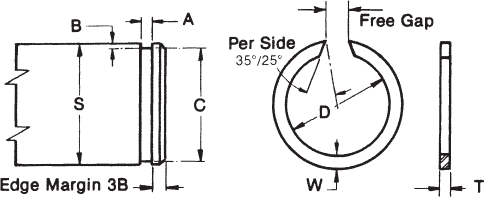

You’ll also notice CAD drawings below to further assist you.
For more information, view all Eaton Rings, or feel free to download our XD light duty external ring PDF or view our complete retaining ring catalog. If you do not see your desired specifications in our XAN external retaining ring size chart below, you can custom-design your own bearing snap ring right on our website!
Request Your Custom Quote Today
Connect with a Retaining Ring Expert
Specifications
Catalog Stock Sizes Available: 0.500″ to 8.000″
Custom Sizes Obtainable: 0.050″ to 60″
Standard Material: Carbon Spring Steel
| Part Number | Shaft | Ring | Groove | Free Gap | Ring Thrust Capacity Lbs. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter S | Free Diameter | Wire Section | Diameter | Width | ||||||||||
| Frac. inches | Dec. inches |
mm | D inches | Tol. inches | W ±.005 |
T ±.002 |
C | Tol. | Width A | Nom. Depth B | Min. | Max | ||
| XD50 | 1/2 | .500 | 12.70 | .465 | +.000 | .048±:003 | .035 | .474 | .039 | .013 | 460 | |||
| XD62 | 5/8 | .625 | 15.88 | .587 | -.025 | .062±.003 | .035 | .597 | ±.002 | +.003 -.000 |
.014 | .062 | .218 | 520 |
| XD75 | 3/4 | .750 | 19.05 | .704 | .078±.008 | .042 | .716 | .017 | 900 | |||||
| XD87 | 7/8 | .875 | 22.23 | .823 | .093 | .042 | .833 | .021 | 1100 | |||||
| XD100 | 1 | 1.000 | 25.40 | .944 | ±.003 | .042 | .954 | ±.003 | .023 | 1200 | ||||
| XD112 | 1 1/8 | 1.125 | 25.58 | 1.065 | .042 | 1.077 | .024 | 1600 | ||||||
| XD118 | 1 3/16 | 1.187 | 30.15 | 1.120 | +.000 | .042 | 1.135 | .026 | 1700 | |||||
| XD125 | 1 1/4 | 1.250 | 31.75 | 1.179 | -.031 | .125 | .042 | 1.194 | .028 | .125 | .281 | 1800 | ||
| XD131 | 1 5/16 | 1.312 | 33.32 | 1.232 | ±.005 | .042 | 1.252 | .030 | 1900 | |||||
| XD137 | 1 3/8 | 1.375 | 34.93 | 1.289 | .042 | 1.309 | .033 | 2010 | ||||||
| XD143 | 1 7/16 | 1.437 | 36.50 | 1.349 | .042 | 1.369 | ±.004 | .046 | .034 | 2120 | ||||
| xD150 | 1 1/2 | 1.500 | 38.10 | 1.410 | .042 | 1.430 | +.003 | .035 | 2260 | |||||
| XD162 | 1 5/8 | 1.625 | 41.28 | 1.520 | .042 | 1.545 | -.000 | 2800 | ||||||
| XD168 | 1 11/16 | 1.687 | 42.85 | 1.582 | .042 | 1.607 | 2900 | |||||||
| XD175 | 1 3/4 | 1.750 | 44.45 | 1.645 | .042 | 1.670 | 3000 | |||||||
| XD193 | 1 15/16 | 1.937 | 49.20 | 1.832 | +.000 | .156 | .042 | 1.857 | 3100 | |||||
| XD200 | 2 | 2.000 | 50.80 | 1.895 | -.062 | ±.005 | .042 | 1.920 | .040 | .156 | .437 | 3200 | ||
| XD218 | 2 3/16 | 2.187 | 55.55 | 2.082 | .042 | 2.107 | 3400 | |||||||
| XD225 | 2 1/4 | 2.250 | 57.15 | 2.145 | .042 | 2.170 | 3500 | |||||||
| XD237 | 2 3/8 | 2.375 | 60.33 | 2.270 | .042 | 2.295 | 3600 | |||||||
| XD250 | 2 1/2 | 2.500 | 63.50 | 2.390 | .042 | 2.420 | 3650 | |||||||
| XD275 | 2 3/4 | 2.750 | 69.85 | 2.596 | .062 | 2.626 | 5790 | |||||||
| XD293 | 2 15/16 | 2.937 | 74.60 | 2.783 | .062 | 2.813 | 6150 | |||||||
| XD300 | 3 | 3.000 | 76.20 | 2.846 | +.000 | .187 | .062 | 2.876 | .068 | 6250 | ||||
| XD312 | 3 1/8 | 3.125 | 79.38 | 2.965 | -.078 | ±.005 | .062 | 3.000 | ±.006 | ±OO4 | .062 | .156 | .468 | 6400 |
| XD325 | 3 1/4 | 3.250 | 82.55 | 3.090 | .062 | 3.125 | -.000 | 6500 | ||||||
| XD337 | 3 3/8 | 3.375 | 85.73 | 3.215 | .062 | 3.250 | 6600 | |||||||
| XD350 | 3 1/2 | 3.500 | 88.90 | 3.340 | .062 | 3.375 | 6700 | |||||||
| XD375 | 3 3/4 | 3.750 | 95.25 | 3.570 | .078 | 3.610 | 8800 | |||||||
| XD400 | 4 | 4.000 | 101.60 | 3.820 | .078 | 3.860 | 9000 | |||||||
| XD425 | 4 1/4 | 4.250 | 107.95 | 4.070 | +.000 | .218 | .078 | 4.110 | .086 | .070 | .187 | .562 | 9200 | |
| XD450 | 4 1/2 | 4.500 | 114.30 | 4.320 | -.093 | ±.005 | .078 | 4.360 | +.005 | 9400 | ||||
| XD475 | 4 3/4 | 4.750 | 120.65 | 4.560 | .078 | 4.610 | -.000 | 9200 | ||||||
| XD500 | 5 | 5.000 | 127.00 | 4.800 | .078 | 4.860 | 9000 | |||||||
| XD550 | 5 1/2 | 5.500 | 139.70 | 5.280 | .093 | 5.340 | 13000 | |||||||
| XD600 | 6 | 6.000 | 152.40 | 5.775 | +.000 | .250 | .093 | 5.840 | .103 | .080 | .218 | .750 | 9000 | |
| XD650 | 6 1/2 | 6.500 | 165.10 | 6.270 | -.125 | ±.005 | .093 | 6.340 | +.005 | 7500 | ||||
| XD700 | 7 | 7.000 | 177.80 | 6.765 | .093 | 6.840 | ±.008 | -.000 | 6100 | |||||
| XD750 | 7 1/2 | 7.500 | 190.50 | 7.245 | +.000 | .281 | .109 | 7.320 | .120 | .090 | .218 | .812 | – | |
| XD800 | 8 | 8.000 | 203.24 | 7.740 | -.156 | ±.005 | .109 | 7.820 | +.005 -.000 |
– | ||||
