Metric E Ring (D1500)
E-Ring Retaining Rings: Metric E Ring (D1500)

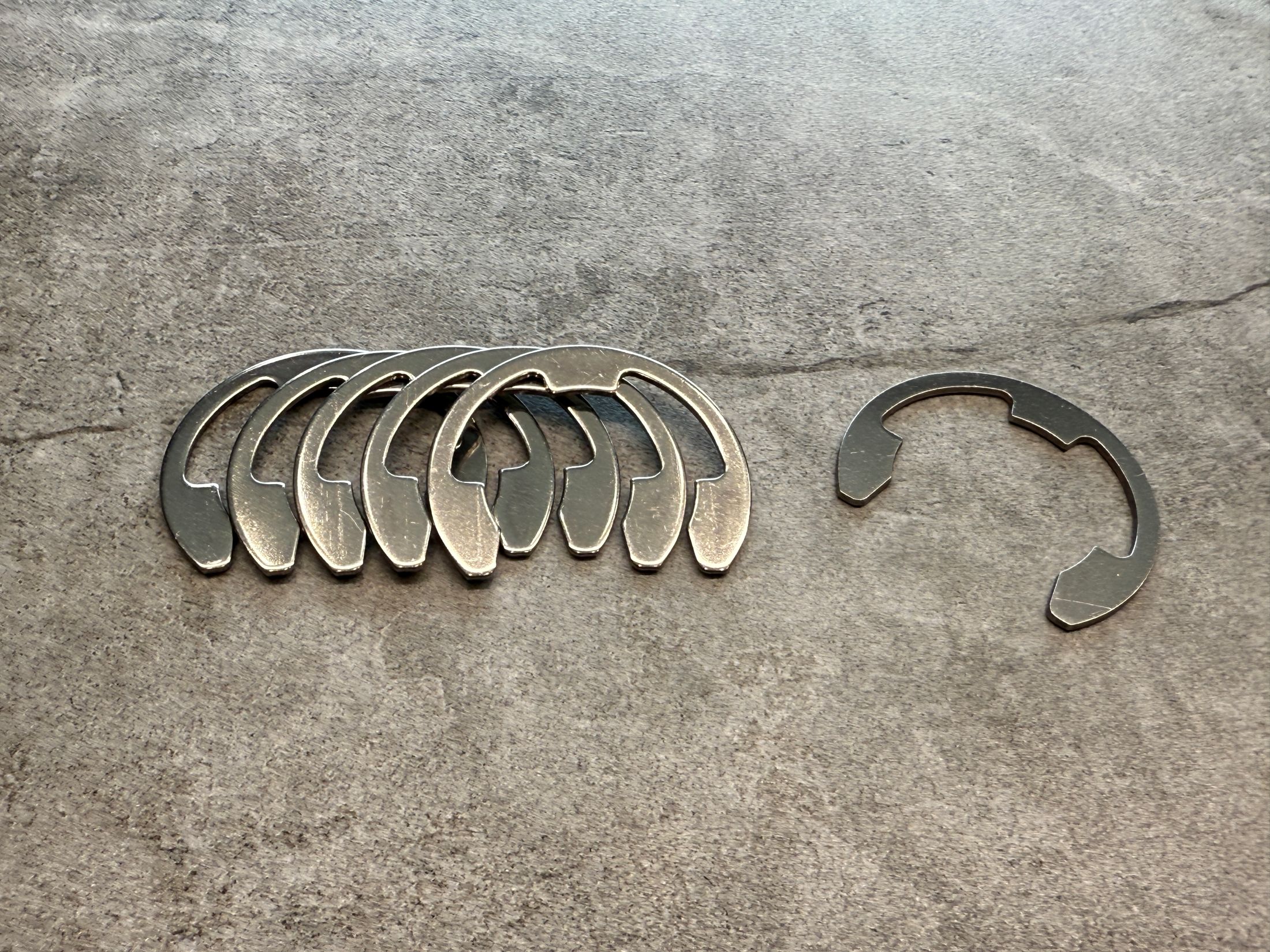

Arcon Ring’s Metric E‑Rings (D1500 series) are engineered for dependable axial retention in precision assemblies. Manufactured to metric tolerances, these rings provide a snug, consistent fit for both standard and custom applications. With fast lead times and expert support, Arcon Ring delivers efficient, reliable solutions to meet your production requirements. Contact us today for assistance.
Download Our Product Catalog
Connect with an E-Ring Expert
Specifications
Catalog Stock Sizes Available: 1.2mm to 31.5mm
Custom Sizes Obtainable: 0.050″ to 60″
Standard Material: Carbon Spring Steel
Standard Finish: Phosphate & Oil
| Part Number | Shaft | Ring | Groove | Tc† (N) | Tg† (N) | Assembly Tools | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter | Thickness | Diameter | Diameter | Width | Applicator No. | Dispenser No. | ||||||||||||
| S mm | Tol. mm | t mm | Tol. mm | C mm | C1 mm | A | Tol. | G mm | Tol. mm | W mm | Tol. mm | n (min) | d Nom | |||||
| D1500-.8 | 1.20 | ±0.20 | 0.20 | 1.95 | 2.25 | 0.58 | 0.8 | +0.00 | 0.24 | +0.04 | 0.4 | 1.20 | 63 | 30 | – | – | ||
| D1500-1.2 | 1.70 | ±0.30 | 0.30 | 2.90 | 3.25 | 1.01 | 1.2 | -0.04 | 0.34 | -0.00 | 0.6 | 0.25 | 203 | 53 | 28 | DR 44 | ||
| D1500-1.5 | 2.25 | ±0.25 | 0.40 | 3.85 | 4.25 | 1.28 | ±0.04 | 1.5 | +0.00 | 0.44 | 0.8 | 0.38 | 358 | 105 | 21 A | DR 56 | ||
| D1500-1.9 | 2.75 | 0.50 | 4.40 | 4.8 | 1.61 | 1.9 | -0.06 | 0.54 | 1.0 | 0.43 | 546 | 145 | 22 | DR 72 | ||||
| D1500-2.3 | 3.50 | ±0.50 | 0.60 | ±0.02 | 5.90 | 6.3 | 1.94 | 2.3 | 0.64 | 1.0 | 0.60 | 835 | 260 | 3 C | DR 87 | |||
| D1500-3.2 | 4.50 | 0.60 | 6.80 | 7.3 | 2.7 | 3.2 | 0.64 | 1.0 | 0.65 | 1070 | 365 | 30 | DR 123 | |||||
| D1500-4 | 6.00 | 0.70 | 8.80 | 9.3 | 3.34 | 4.0 | +0.00 | 0.74 | +0.05 | 1.2 | 1.00 | 1670 | 745 | 23 B | DR 154 | |||
| D1500-5 | 7.00 | ±1.00 | 0.70 | 10.75 | 11.3 | 4.11 | ±0.048 | 5.0 | -0.075 | 0.74 | -0.00 | 1.2 | 1.00 | 1950 | 870 | 7 B | DR 194 | |
| D1500-6 | 8.00 | 0.70 | 11.75 | 12.3 | 5.26 | 6.0 | 0.74 | 1.2 | 1.00 | 2220 | 995 | 24 | DR 232 | |||||
| D1500-7 | 9.50 | ±1.50 | 0.90 | 13.80 | 14.3 | 5.84 | 7.0 | 0.94 | 1.5 | 1.25 | 3400 | 1480 | 15 | FR 273 | ||||
| D1500-8 | 10.50 | 1.00 | 15.60 | 16.3 | 6.52 | 8.0 | +0.00 | 1.05 | 1.8 | 1.25 | 4170 | 1630 | 16 C | FR 311 | ||||
| D1500-9 | 12.00 | ±2.00 | 1.10 | 18.20 | 18.8 | 7.63 | ±0.058 | 9.0 | -0.09 | 1.15 | 2.0 | 1.50 | 5250 | 2240 | 25 | FR 350 | ||
| D1500-10 | 13.00 | 1.20 | 19.65 | 20.4 | 8.32 | 10.0 | 1.25 | 2.0 | 1.50 | 6200 | 2430 | 26 | FR 389 | |||||
| D1500-12 | 15.50 | ±2.50 | 1.30 | ±0.03 | 22.65 | 23.4 | 10.45 | 12.0 | +0.00 | 1.35 | +0.08 | 2.5 | 1.75 | 8010 | 3370 | 27 | FR 468 | |
| D1500-15 | 20.00 | ±4.00 | 1.50 | 28.60 | 29.4 | 12.61 | ±0.07 | 15.0 | -0.11 | 1.55 | -0.00 | 3.0 | 2.50 | 11900 | 6220 | 20 B | FR 586 | |
| D1500-19 | 25.50 | ±5.50 | 1.75 | 36.70 | 37.6 | 15.92 | 19.0 | +0.00 | 1.85 | 3.5 | 3.25 | 17700 | 10300 | 32 A | FR 743 | |||
| D1500-24 | 31.50 | ±6.50 | 2.00 | 43.65 | 44.6 | 21.88 | ±0.084 | 24.0 | -0.13 | 2.05 | 4.0 | 3.75 | 25000 | 14700 | – | – | ||
