Push-On External Retaining Rings
External Retaining Rings: Push-On

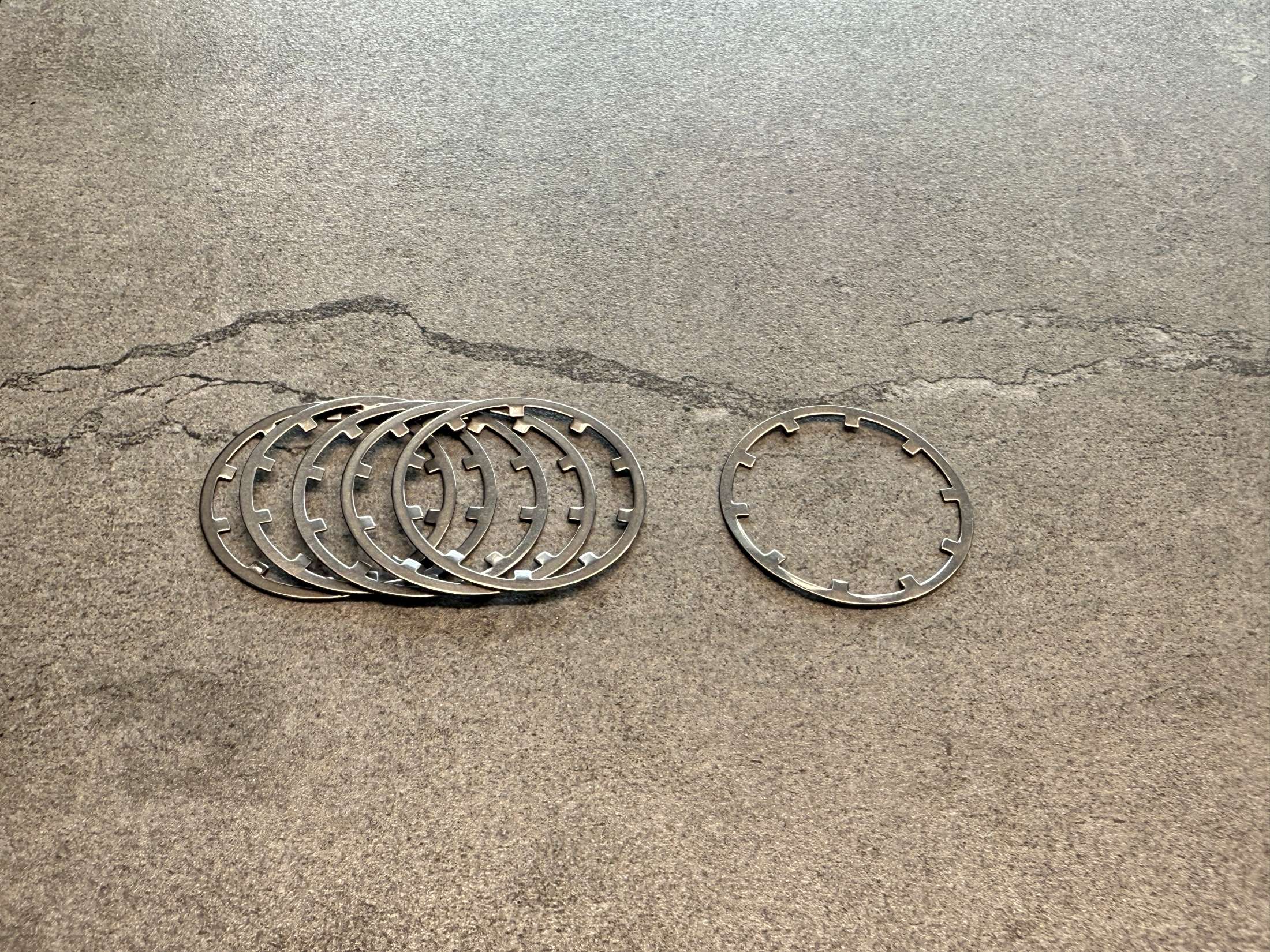

Arcon Ring’s Push-On External Retaining Rings are designed to fit securely on the outside of a shaft without the need for a machined groove. Featuring teeth or prongs that apply inward pressure, these rings offer a reliable hold for low-force applications where ease of assembly is essential.

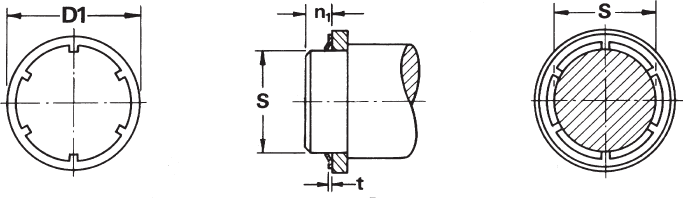

Browse our complete list of external push-on ring dimensions and configuration drawings below.
We also offer a full range of external retaining rings, including Standard, Bowed, Heavy Duty Push-On, Heavy Duty Standard, and Grip.
Download Our Product Catalog
Connect with a Retaining Ring Expert
Specifications
Catalog Stock Sizes Available: 0.093″ to 1.002″
Custom Sizes Obtainable: 0.050″ to 60″
Standard Material: Carbon Spring Steel
Standard Finish: Phosphate & Oil
| Part Number | Shaft | Ring | n1 (min) |
Approx. Wt. lb/1000 pcs. |
Tc+ (lb.f) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| Diameter S | Outside Diameter | Thickness | ||||||||
| min (inch) |
max (inch) |
fraction ~ |
D1 inches |
Tol. inches |
t inches |
Tol. inches |
||||
| 1405-9 | .093 | 0.095 | 3/32 | 0.250 | ±.005 | .010 | ±.001 | .040 | 0.09 | 13 |
| 1405-12 | .124 | 0.126 | 1/8 | 0.325 | .010 | .040 | 0.14 | 20 | ||
| 1405-15 | .155 | 0.157 | 5/32 | 0.356 | .010 | .040 | 0.17 | 25 | ||
| 1405-18 | .187 | 0.189 | 3/16 | 0.387 | .010 | .040 | 0.20 | 35 | ||
| 1405-21 | .218 | 0.220 | 7/32 | 0.418 | .010 | .040 | 0.21 | 35 | ||
| 1405-24 | .239 | 0.241 | – | 0.460 | .015 | ±.002 | .060 | 0.35 | 40 | |
| 1405-25 | .249 | 0.251 | 1/4 | 0.450 | .010 | .040 | 0.23 | 40 | ||
| 1405-31 | .311 | 0.313 | 5/16 | 0.512 | .010 | ±.001 | .040 | 0.26 | 45 | |
| 1405-37 | .374 | 0.376 | 3/8 | 0.575 | .010 | .040 | 0.27 | 45 | ||
| 1405-43 | .437 | 0.439 | 7/16 | 0.638 | .015 | .060 | 0.47 | 50 | ||
| 1405-50 | .498 | 0.502 | 1/2 | 0.750 | .015 | ±.002 | .060 | 0.72 | 50 | |
| 1405-56 | .560 | 0.564 | 9/16 | 0.812 | ±.010 | .015 | .060 | 0.75 | 50 | |
| 1405-62 | .623 | 0.627 | 5/8 | 0.875 | .015 | .060 | 0.82 | 50 | ||
| 1405-75 | .748 | 0.752 | 3/4 | 1.000 | .015 | .060 | 0.97 | 55 | ||
| 1405-87 | .873 | 0.877 | 7/8 | 1.125 | .015 | .060 | 1.10 | 60 | ||
| 1405-100 | .998 | 1.002 | 1 | 1.250 | .015 | .060 | 1.20 | 65 | ||
