Push-On Heavy-Duty External Retaining Rings

External Retaining Rings: Push-On Heavy-Duty

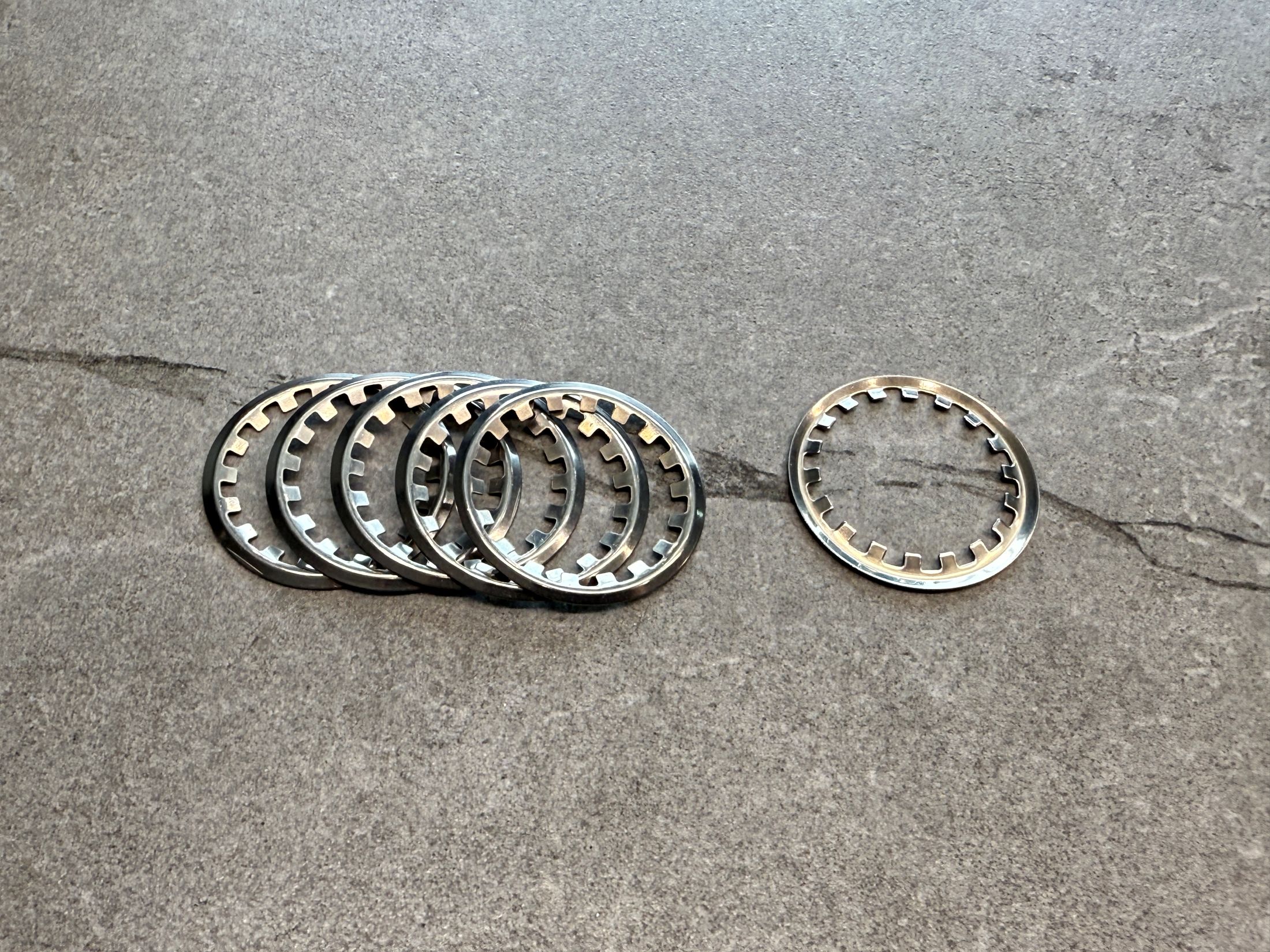

Arcon Ring’s Heavy Duty External Push-On Rings provide the same easy-to-install, groove-free design as our Standard Push-On Retaining Rings, but with enhanced strength for higher-load applications. Built for durability and available in a wider range of sizes, these rings are ideal for tough industrial environments where added holding power is required.

Explore our full list of heavy-duty push-on ring dimensions and configuration drawings below.

Ring Specifications
1465 Stamped Retaining Rings

Download Our Product Catalog

View Catalog

Connect with a Retaining Ring Expert

Contact Arcon
Specifications

Catalog Stock Sizes Available: 0.091″ to 1.005″
Custom Sizes Obtainable: 0.050″ to 60″
Standard Material: Carbon Spring Steel
Standard Finish: Phosphate & Oil

Push-on Heavy Duty External Retaining Rings Technical Drawing
Part Number Shaft Ring n1
(min)		 Approx. Wt.
lb/1000 pcs.		 Tc+
(lb.f)
Diameter S Outside Diameter Ring Height Thickness
min.
(inch)		 max
(inch)		 fraction
~		 D1
inches		 Tol.
inches		 H
inches		 Tol.
inches		 t
inches		 Tol.
inches
1465-9 .091 .097 3/32 .326 ±.005 .029 ±.005 .010 ±.001 .058 0.15 27
1465-12 .121 .129 1/8 .366 .029 .010 .058 0.20 38
1465-15 .152 .160 5/32 .397 .043 ±.009 .010 .058 0.22 45
1465-18 .184 .192 3/16 .444 .031 ±.007 .010 .062 0.26 55
1465-25 .246 .254 1/4 .522 .037 ±.008 .010 .074 0.39 58
1465-31 .308 .316 5/16 .584 .037 .010 .074 0.44 60
1465-37 .371 .379 3/8 .645 .037 .010 .074 0.48 65
1465-43 .432 .442 7/16 .737 .045 ±.009 .015 ±.002 .090 0.97 120
1465-50 .495 .505 1/2 .828 ±.010 .054 ±.010 .015 .108 0.74 120
1465-56 .557 .567 9/16 .889 .054 .015 .108 1.39 125
1465-62 .620 .630 5/8 .951 .054 .015 .108 1.47 135
1465-75 .745 .755 3/4 1.076 .054 .015 .108 1.65 140
1465-87 .870 .880 7/8 1.203 .054 .015 .108 1.96 140
1465-100 .995 1.005 1 1.327 .054 .015 .108 2.23 140
