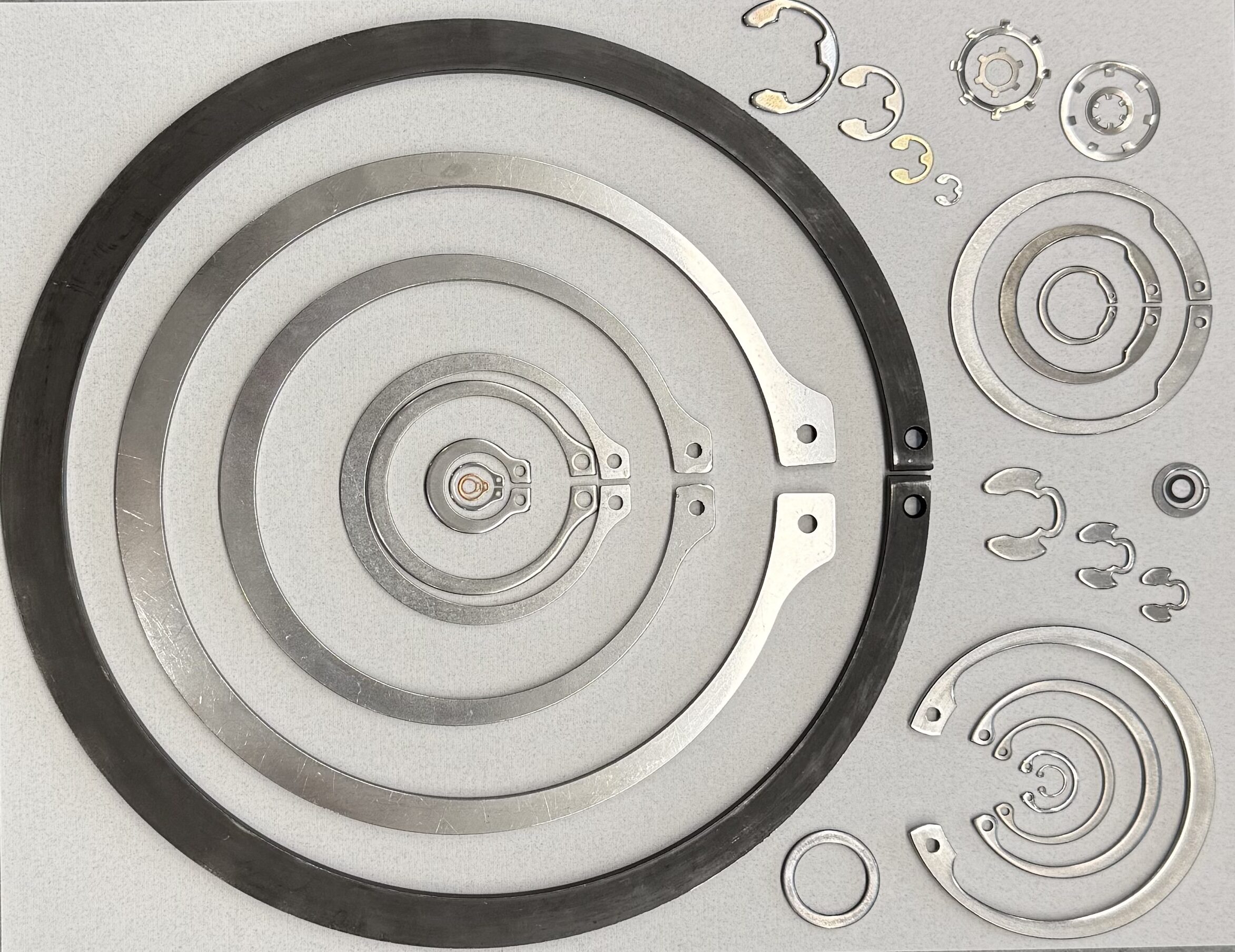

Stamped Retaining Rings > E-Ring Retaining Rings
Reinforced E Rings
E-Ring Retaining Rings: Reinforced E Rings
Arcon Ring’s Reinforced E‑Rings are designed for high-strength axial retention in demanding applications. Reinforced with additional load-bearing material, these rings deliver enhanced wear resistance and durable performance. With fast lead times and expert support, Arcon Ring supplies reliable solutions to optimize your assembly operations. Contact us today for assistance.
Download Our Product Catalog
Connect with an E-Ring Expert
Specifications
Catalog Stock Sizes Available: .094″ to .562″
Custom Sizes Obtainable: 0.050″ to 60″
Standard Material: Carbon Spring Steel
Standard Finish: Phosphate & Oil

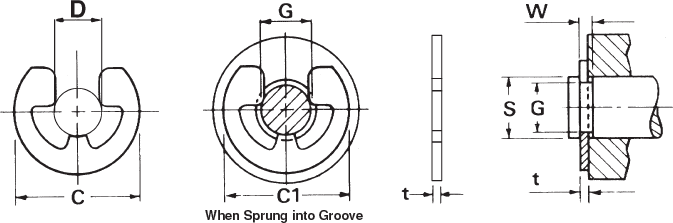

| Part Number | Shaft | Ring | Groove | Approx Wt. lb/1000 pcs. |
Permissible Thrust Load (lbs) |
Assembly Tools | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter S | Thickness | Free Diameter | Diameter | Width | Applicator No. | Dispenser No. | |||||||||||
| Frac. Inch | Dec. inch | mm | t inches | Tol. inches | D inches | Tol. Inches | C | C1 | G inches | Tol. inches | W inches | Tol. inches | |||||
| 1540-9 | 3/32 | .094 | 2.4 | .015 | .072 | +.001 | .206 | .219 | .074 | .018 | +.002 | .07 | 50 | AM 30 | SF 30 | ||
| 1540-12 | 1/8 | .125 | 3.2 | .015 | .093 | -.003 | .270 | .283 | .095 | +.002 | .018 | -.000 | .13 | 75 | AM 31 | SF 31 | |
| 1540-15 | 5/32 | .156 | 4.0 | .025 | .113 | +.002 -.003 |
.335 | .35 | .116 | -.000 | .029 | .31 | 150 | AM 32 | SF 32 | ||
| 1540-18 | 3/16 | .188 | 4.8 | .025 | .143 | .375 | .39 | .147 | .029 | .39 | 180 | AM 33 | SF 33 | ||||
| 1540-21 | 7/32 | .219 | 5.6 | .025 | .182 | ±.003 | .446 | .46 | .188 | .029 | .54 | 220 | AM 34 | SF 34 | |||
| 1540-25 | 1/4 | .250 | 6.3 | .025 | ±.002 | .204 | .516 | .53 | .210 | ±.002 | .029 | .71 | 250 | AM 35 | SF 35 | ||
| 1540-31 | 5/16 | .312 | 7.9 | .025 | .242 | .588 | .61 | .250 | .039 | +.003 | 1.2 | 420 | AM 36 | SF 36 | |||
| 1540-37 | 3/8 | .375 | 9.5 | .035 | .292 | .660 | .68 | .303 | .039 | -.000 | 1.5 | 520 | AM 37 | SF 37 | |||
| 1540-43 | 7/16 | .438 | 11.1 | .035 | .332 | ±.004 | .746 | .77 | .343 | ±.003 | .039 | 1.9 | 600 | AM 38 | SF 38 | ||
| 1540-50 | 1/2 | .500 | 12.7 | .042 | .385 | .810 | .83 | .396 | .046 | 3.2 | 820 | AM 39 | SF 39 | ||||
| 1540-56 | 9/16 | .562 | 14.3 | .042 | .430 | .870 | .89 | .437 | .046 | 3.5 | 930 | AM 40 | SF 40 | ||||
