Standard Crimp Rings

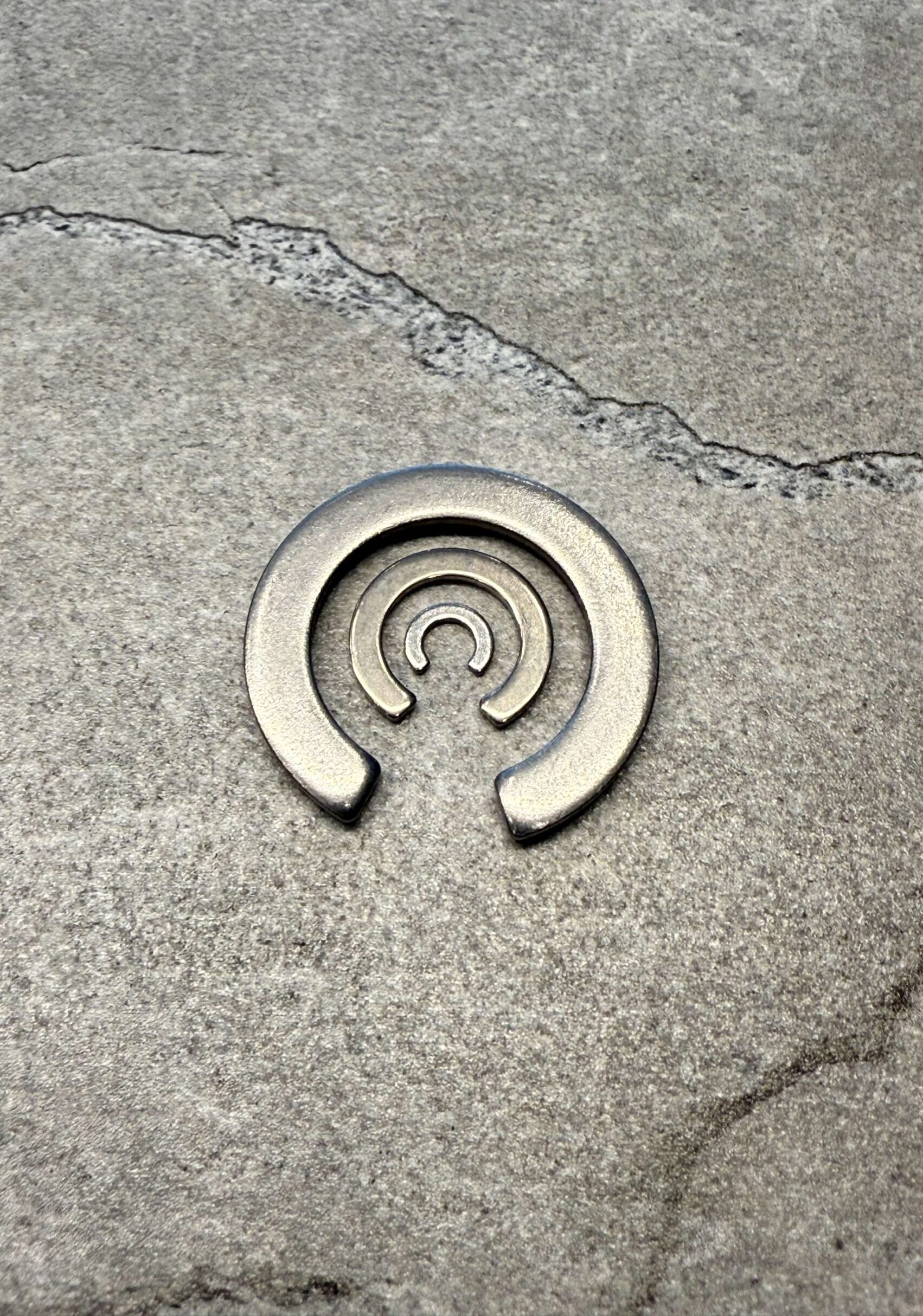

Crimp Rings: Standard Crimp Rings

Arcon Ring’s Standard Crimp Rings are precision-manufactured from high-quality carbon steel, offering reliable axial retention in a range of industrial applications. Designed to meet tight tolerances, these rings ensure consistent performance. With fast lead times, Arcon Ring provides efficient solutions to support your production needs. Contact us today for expert assistance.

Ring Specifications
Standard Crimp Retaining Rings

Download Our Product Catalog

View Catalog

Connect with a Crimp Ring Expert

Contact Arcon
Specifications

Catalog Stock Sizes Available: .188″ to 1.00″
Custom Sizes Obtainable: 0.050″ to 60″
Standard Material: C1008 – 1010
Standard Finish: Plain Finish

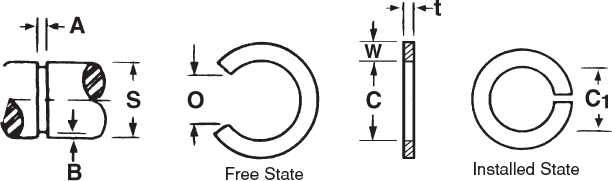

Standard Crimp Rings Technical Drawing
Part Number Reference
Number		 Shaft Ring Groove Dimensions Approx Wt.
lb/1000 pcs.
Diameter S Thickness Width C C1 O
Frac. Inch Dec. inch t inches W inches A Width B Depth
WA-510 AAR-316 3/16 .188 .031 .062 .174 .125 .125 .034 .031 .32
WA-512 AAR-732 7/32 .219 .031 .046 .230 .173 .143 .034 .023 .25
WA-514 AAR-14 1/4 .250 .031 .062 .260 .187 .182 .034 .031 .42
WA-516 AAR-516 5/16 .312 .039 .079 .328 .251 .191 .043 .031 .94
WA-518 AAR-38 3/8 .375 .047 .094 .394 .313 .264 .052 .031 1.65
WA-520 AAR-716 7/16 .438 .055 .109 .459 .376 .203 .060 .031 2.61
WA-522 AAR-12 1/2 .500 .063 .125 .525 .438 .233 .069 .031 3.92
WA-524 AAR-916 9/16 .562 .070 .141 .591 .493 .241 .077 .035 5.53
WA-526 AAR-58 5/8 .625 .078 .156 .656 .547 .253 .086 .039 7.57
WA-528 AAR-1116 11/16 .688 .086 .172 .722 .602 .278 .094 .043 10.13
WA-530 AAR-34 3/4 .750 .094 .188 .788 .656 .310 .103 .047 13.20
WA-532 AAR-1316 1316 .812 .102 .203 .853 .711 .331 .112 .051 16.74
WA-534 AAR-78 7/8 .875 .109 .219 .919 .765 .357 .120 .055 20.80
WA-536 AAR-1516 15/16 .938 .117 .234 .984 .820 .387 .129 .059 25.53
WA-538 AAR-1 1 1.000 .125 .250 1.050 .874 .423 .138 .063 31.10
