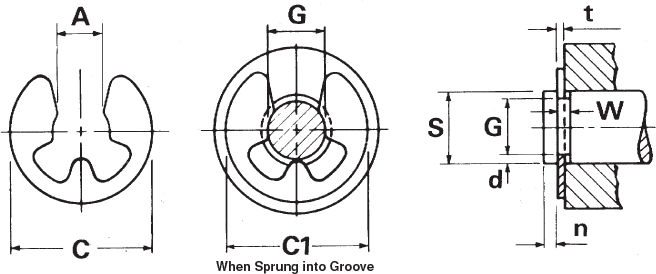

| Specification |
Value |
| SHAFT – Diameter – S mm |
1.70 |
| SHAFT – Diameter – Tol. mm |
±0.30 |
| RING – Thickness – t mm |
0.30 |
| RING – Diameter – C mm |
2.90 |
| RING – Diameter – C1 mm |
3.25 |
| RING – Diameter – A |
1.01 |
| GROOVE – Diameter – G mm |
1.2 |
| GROOVE – Diameter – Tol. mm |
-0.04 |
| GROOVE – Width – W mm |
0.34 |
| GROOVE – Width – Tol. mm |
-0.00 |
| GROOVE – n (min) |
0.6 |
| GROOVE – d Nom |
0.25 |
| Tc† (N) |
203 |
| Tg† (N) |
53 |
| ASSEMBLY TOOLS – Appli-cator No. |
28 |
| ASSEMBLY TOOLS – Dis-penser No. |
DR 44 |
|
Arcon Ring Manufacturing
3875 Kettle Ct E.
Delafield, WI 53018 |
Quantities to be Quoted:
Part Number: D1500-1.2 |
Notes: |
