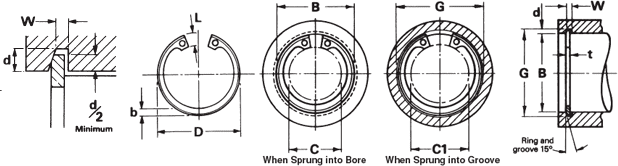

| RETAINING RING BORE – Diameter B – Frac.Inch |
2 13/16 |
| RETAINING RING BORE – Diameter B – Dec. Inch |
2.812 |
| RETAINING RING DIMENSIONS – Thickness – t Inch |
0.093 |
| RETAINING RING DIMENSIONS – Thickness – Tol. Inch |
±.003 |
| RETAINING RING DIMENSIONS – Free Diameter – D Inch |
3.121 |
| RETAINING RING DIMENSIONS – Free Diameter – Tol. Inch |
+.040-.030 |
| RETAINING RING DIMENSIONS – Free Diameter – C |
2.18 |
| RETAINING RING DIMENSIONS – Free Diameter – C1 |
2.27 |
| RETAINING RING DIMENSIONS – Free Diameter – L(max) |
.300 |
| RETAINING RING DIMENSIONS – Free Diameter – b~ |
.234 |
| RETAINING RING DIMENSIONS – Free Diameter – E |
.014 |
| RETAINING RING GROOVE – Diameter – GInch |
3.020 |
| RETAINING RING GROOVE – Diameter – Tol.Inch |
+.006-.000 |
| RETAINING RING GROOVE – Width – WInch |
0.076 |
| RETAINING RING GROOVE – Width – Tol.Inch |
+.0015-.000 |
| RETAINING RING GROOVE – d |
0.104 |
| Tc †(lb.f) |
30800 |
| Tg †(lb.f) |
8510 |
